Modular Drilling Rigs

Geothermal, Oil and Gas Drilling

Within the business sector drilling technology the focus is on the design and manufacturing of onshore and offshore drilling rigs, mobile drilling rigs, horizontal, vertical and slanted drilling rigs as well as the manufacturing of components, after sales and services.

Whether it's vertical or horizontal drilling, onshore or offshore - STREICHER will find a suitable solution for every drilling project. Longterm experience, expert technical know-how and capabilities in all relevant areas as well as vastly-qualified, motivated employees and high-performance equipment - the STREICHER Group is a competent partner in the drilling technology sector.

STREICHER counts on quality, modularity, automation, customer-specific solutions, service and the highest safety standards. Long-lasting experience in mobile rigs complete the product portfolio in drilling technology.

Furthermore, the experience of DrillTec GUT GmbH Großbohr- und Umwelttechnik and STREICHER Drilling Technology GmbH (link here), subsidiaries of the STREICHER Group, is significantly incorporated into the development of the drilling rigs.

The STREICHER Group offers complete solutions (including mud systems and drilling equipment). This means, the client receives turnkey services from one source; from planning and construction including electrical engineering and software, manufacturing and assembly of hydraulic, pneumatic and electrical systems to commissioning and service. The company also offers upgrades, repair and service of existing customer rigs.

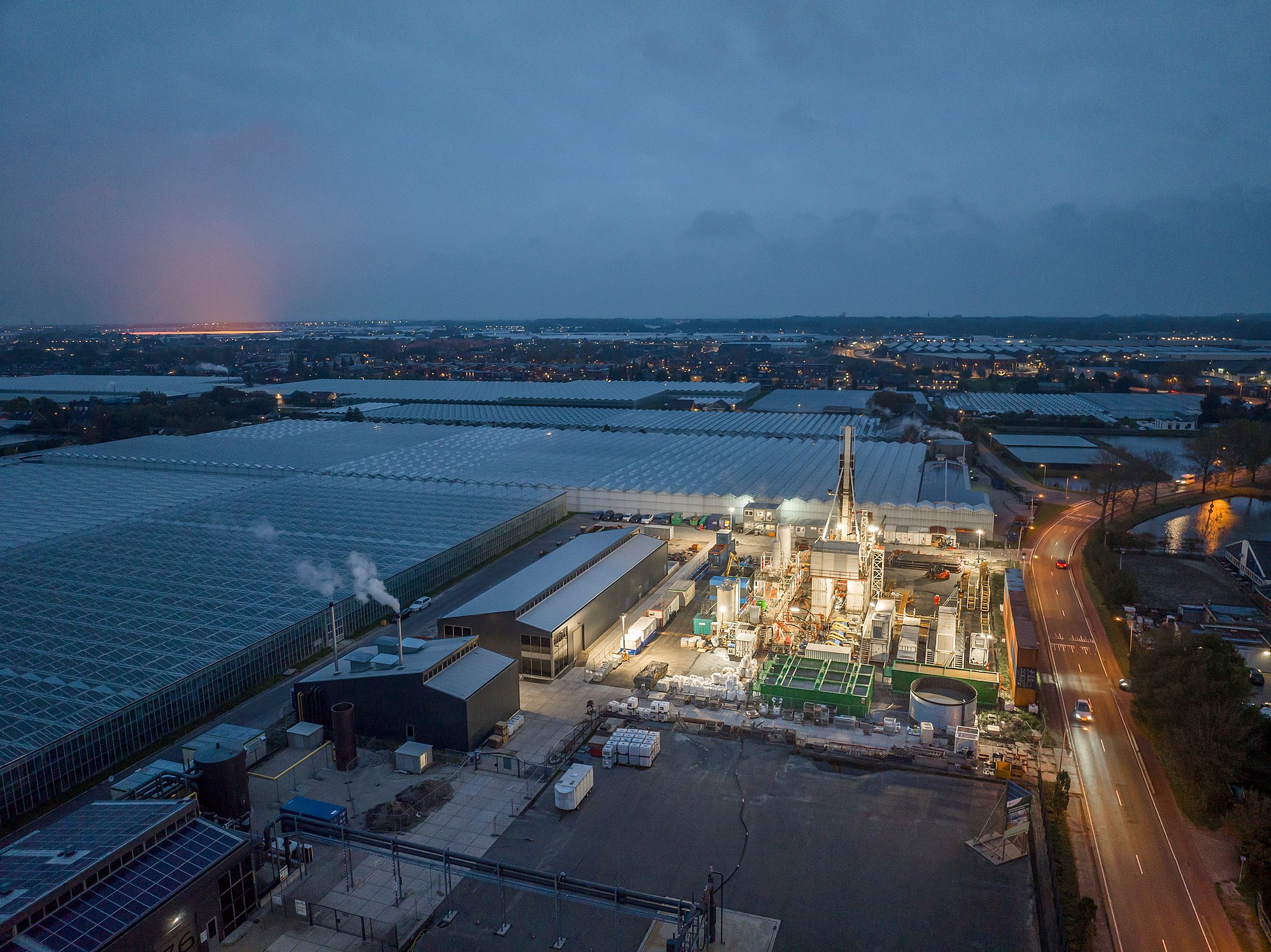

Field of Application: Geothermal Drilling

Geothermal Energy

Reliable Provision of Future Energy Supply

Due to a continuous change in the industrial landscape, the topics of environmental protection and nature conservation - and thus also the question of regenerative energy sources - have gained in importance, especially in recent years. The use of innovative drilling rigs from STREICHER enables a targeted development and extraction of sustainable energy sources by means of geothermal drilling.

Due to its continuous availability and diverse application possibilities, the use of geothermal energy contributes to further reducing the dependence on fossil fuels and to guaranteeing the security of supply. Thus, the switch to sustainable heat generation is further accelerated.

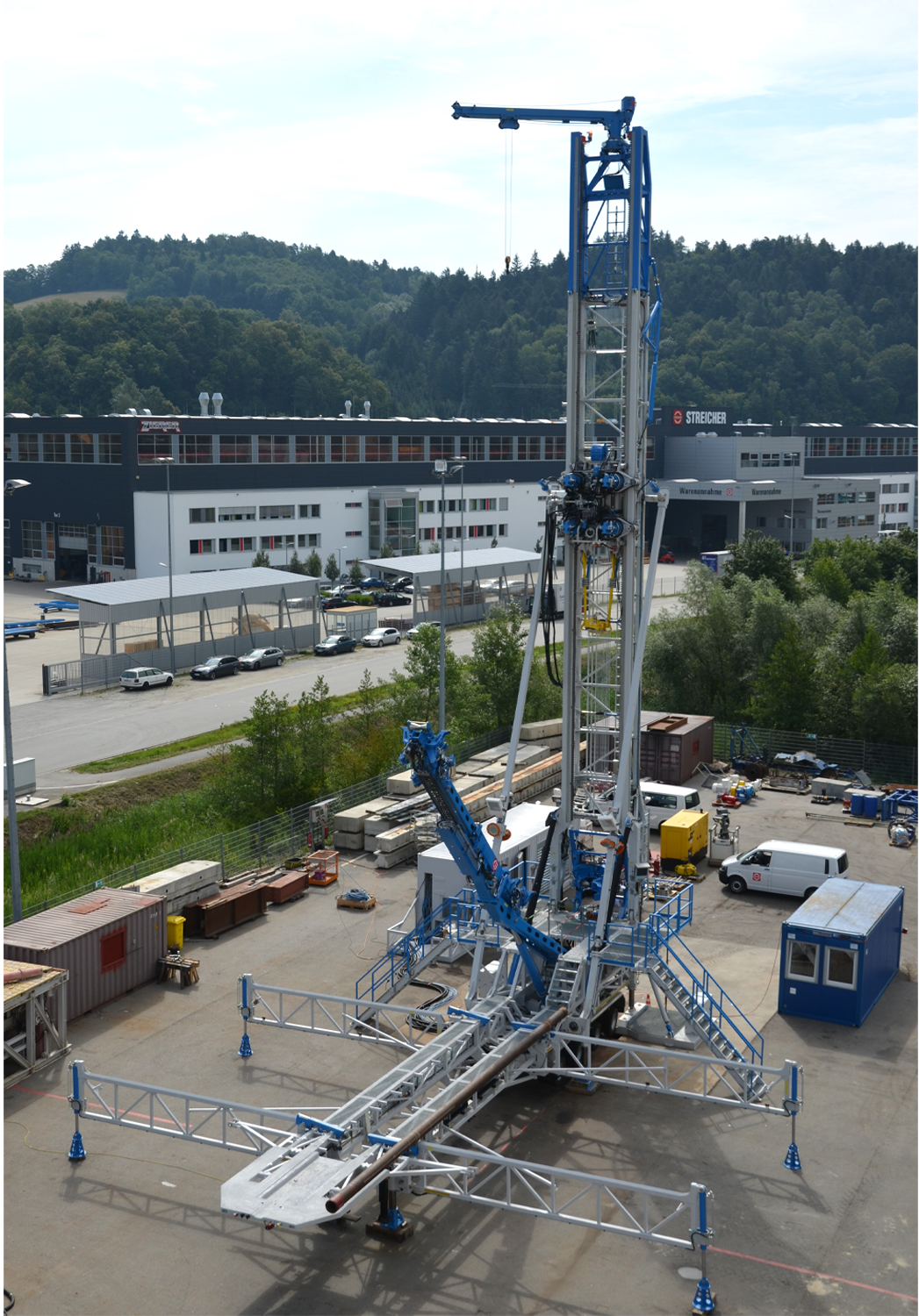

GWR 100

Geothermal Workover Rig

  • Hook Load: 100 t (220,000 lbs)
  • Rated Rig Power: 403 kW (540 hp)
  • Operating Tubular: 3 ½‘‘ to 13 3/8‘‘ (Range III)
  • Max. Tubular Length: 14,63 m

Produktdatenblatt

MRP 125

Mobile Rack & Pinion Rig

  • Hook Load: 125 t (276,000 lbs)
  • Rated Rig Power: 790 kW (1059 hp)
  • Operating Tubular: 3 ½‘‘ to 13 3/8‘‘ (Range III)
  • Max. Tubular Length: 14,63 m

Produktdatenblatt

Field of Application: Oil and Gas

Oil and Gas

Future-Oriented Drilling Technologies for Mobile and Modular Applications

Oil and gas continue to serve as important energy suppliers. In order to develop these energy sources safely and economically, STREICHER relies on innovative and environmentally friendly technologies for the exploration of oil and gas. This ensures not only the sustainability and energy efficiency of the drilling process but also the occupational safety of the drilling personnel.

Thanks to a broad product portfolio, each drilling rig can be individually specified for the drilling application and can therefore be operated both mobile and modular onshore or offshore.

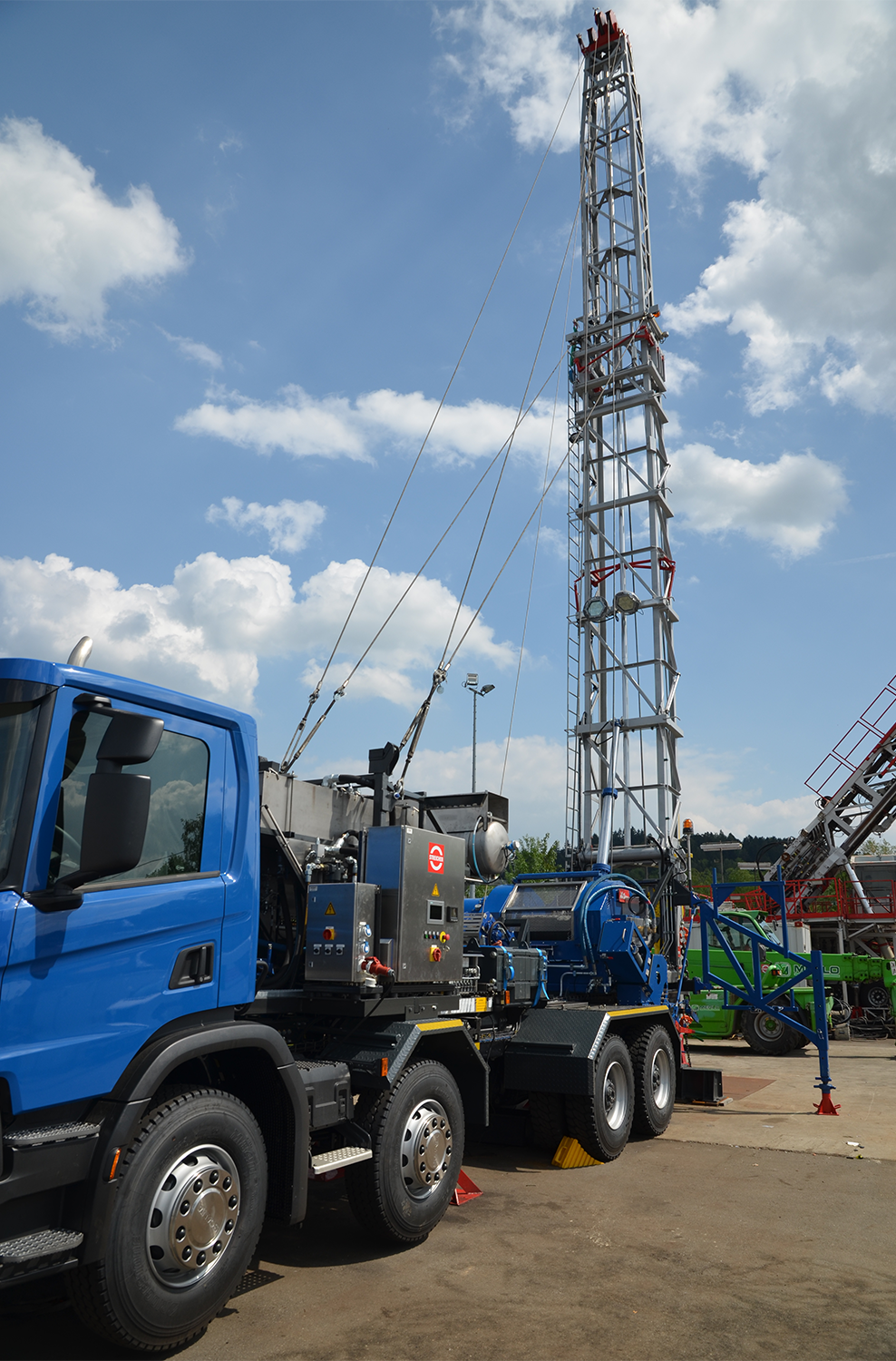

MD 50

Mobile Drilling Rig 50 t

  • Hook Load: 50 t (110,000 lbs)
  • Leistung der Anlage: ? kW
  • Bohrgestänge: ?
  • Max. Gestängelänge: ?

Produktdatenblatt

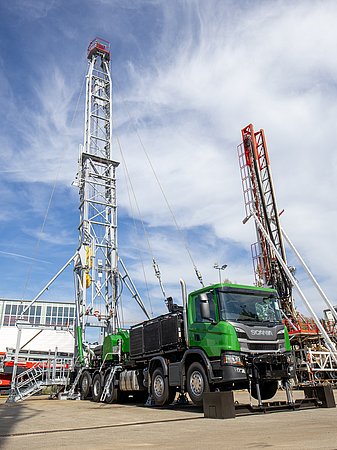

MD 65

Mobile Drilling Rig 65 t

  • Hook Load: 65 t (143,000 lbs)
  • Rated Rig Power: 302 kW (410 hp)
  • Bohrgestänge: ?
  • Max. Gestängelänge: ?

Produktdatenblatt

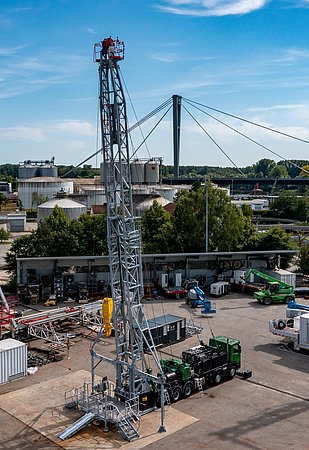

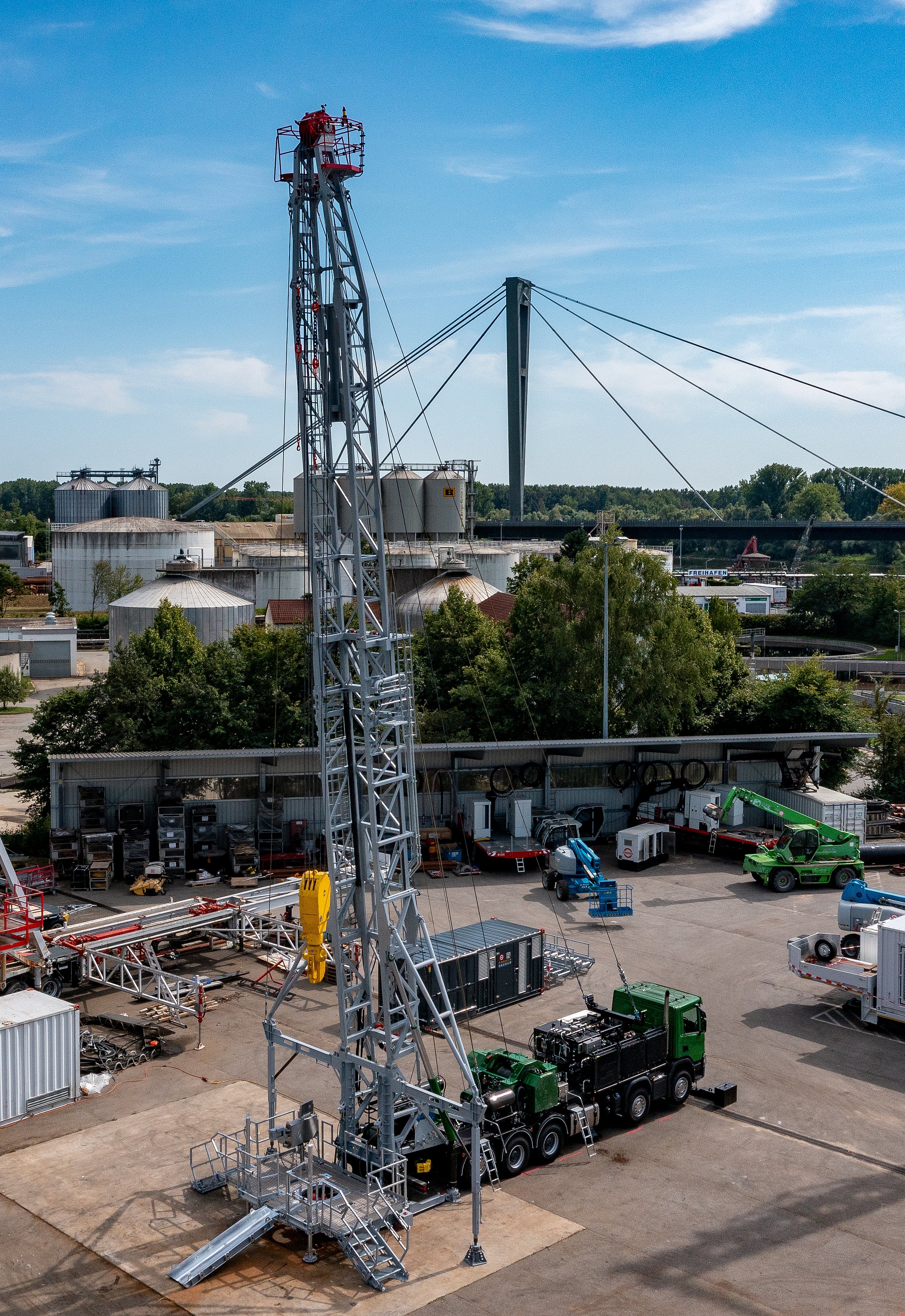

MD 80

Mobile Drilling Rig 80 t

  • Hook Load: 80 t (176,000 lbs)
  • Leistung der Anlage: ? kW
  • Bohrgestänge: ?
  • Max. Gestängelänge: ?

Produktdatenblatt

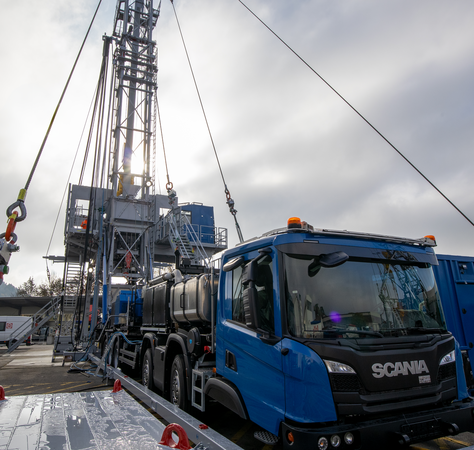

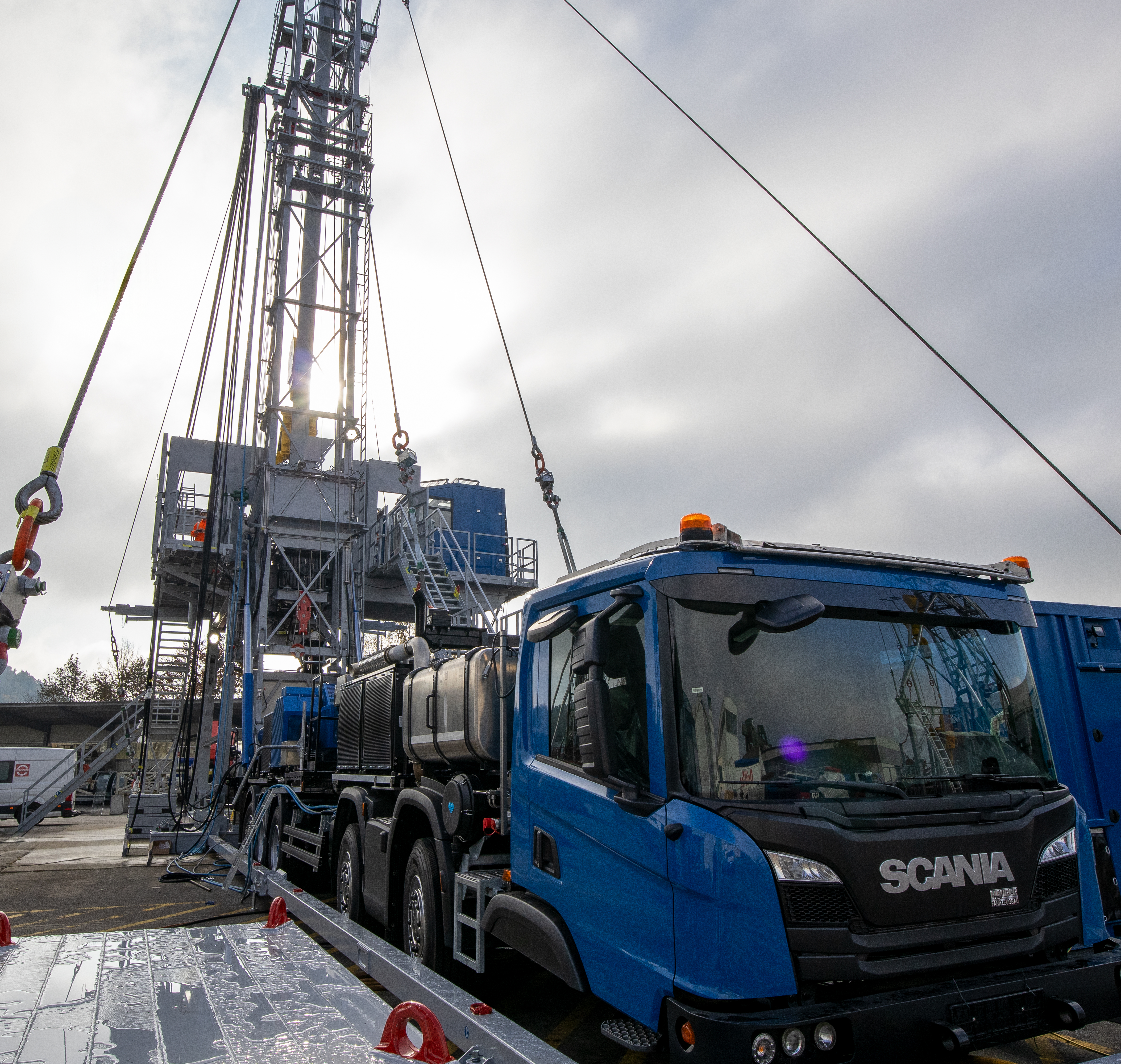

MD 120

Mobile Drilling Rig 120 t

  • Hook Load: 120 t (264,000 lbs)
  • Leistung der Anlage: ? kW
  • Bohrgestänge: ?
  • Max. Gestängelänge: ?

Produktdatenblatt

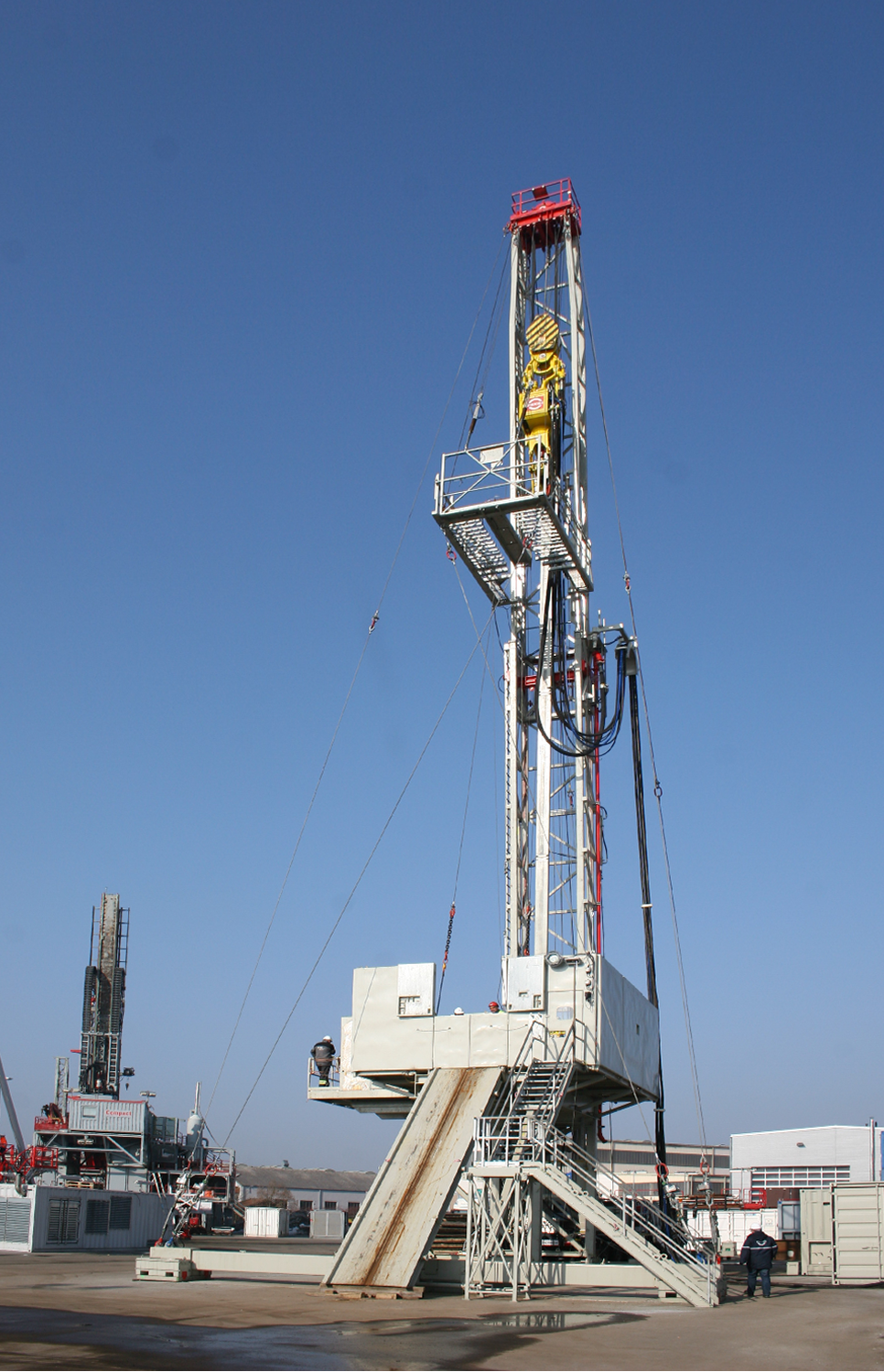

MD 150

Mobile Drilling Rig 150 t

  • Hook Load: 150 t (330,000 lbs)
  • Rated Rig Power: 563 kW (750 hp)
  • Operating Tubular: 5‘‘ (130 pcs), 9 ½‘‘ (4 pcs), 6 ½‘‘ (6 pcs)
  • Max. Tubular Length: 2,47 m

Data sheet

MD 200

Mobile Drilling Rig 200 t

  • Hook Load: 200 t (441,000 lbs)
  • Rated Rig Power: 806 kW (1080 hp)
  • Operating Tubular: 1 ¼‘‘ (Range II)
  • Max. Gestängelänge: ?

Produktdatenblatt

SVR 150

Slanted and Vertical Drilling Rig

  • Push / Pull Load: 80 / 150 t (176 / 330,000 lbs)
  • Rated Rig Power: 783 kW (1050 hp)
  • Operating Tubular: 3 ½‘‘ to 13 3/8‘‘ (Range III)
  • Max. Gestängelänge: ?

Produktdatenblatt

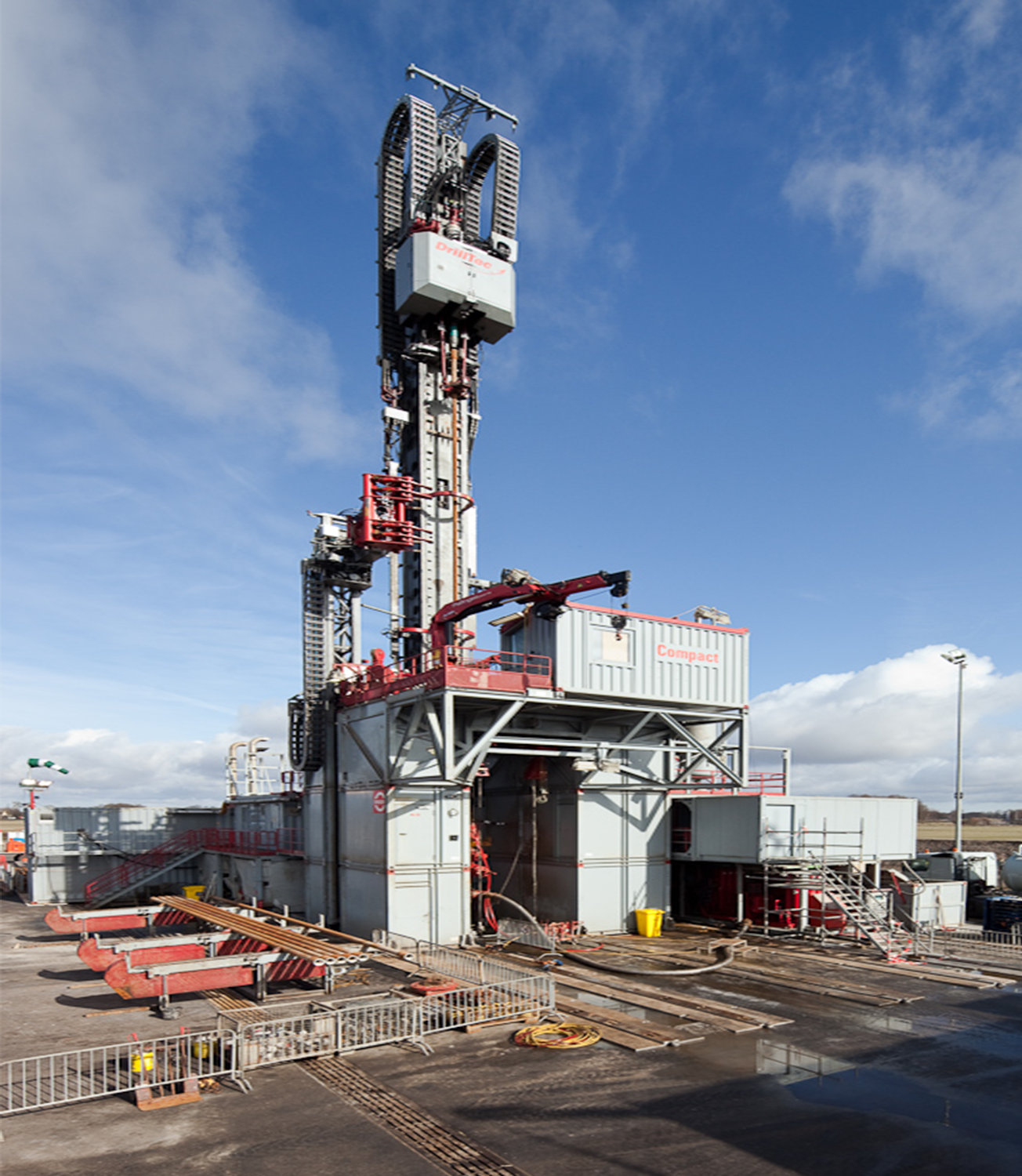

VDD 200

Modular Onshore Drilling Rig 200 t

  • Hook Load: 200 t (441,000 lbs)
  • Rated Rig Power: 634 kW (850 hp)
  • Operating Tubular: 2 3/8‘‘ to 20‘‘ (III Range – Singles) (tubular range?, mehrere zur Auswahl)
  • Max. Gestängelänge: ?

Produktdatenblatt

VDD 370

Modular Onshore Drilling Rig 370 t

  • Hook Load: 370 t (816,000 lbs)
  • Rated Rig Power: 660 kW (885 hp)
  • Operating Tubular: 2 3/8‘‘ bis 20‘‘ (III Range – Singles) (tubular range?, mehrere zur Auswahl)
  • Max. Gestängelänge: ?

Produktdatenblatt

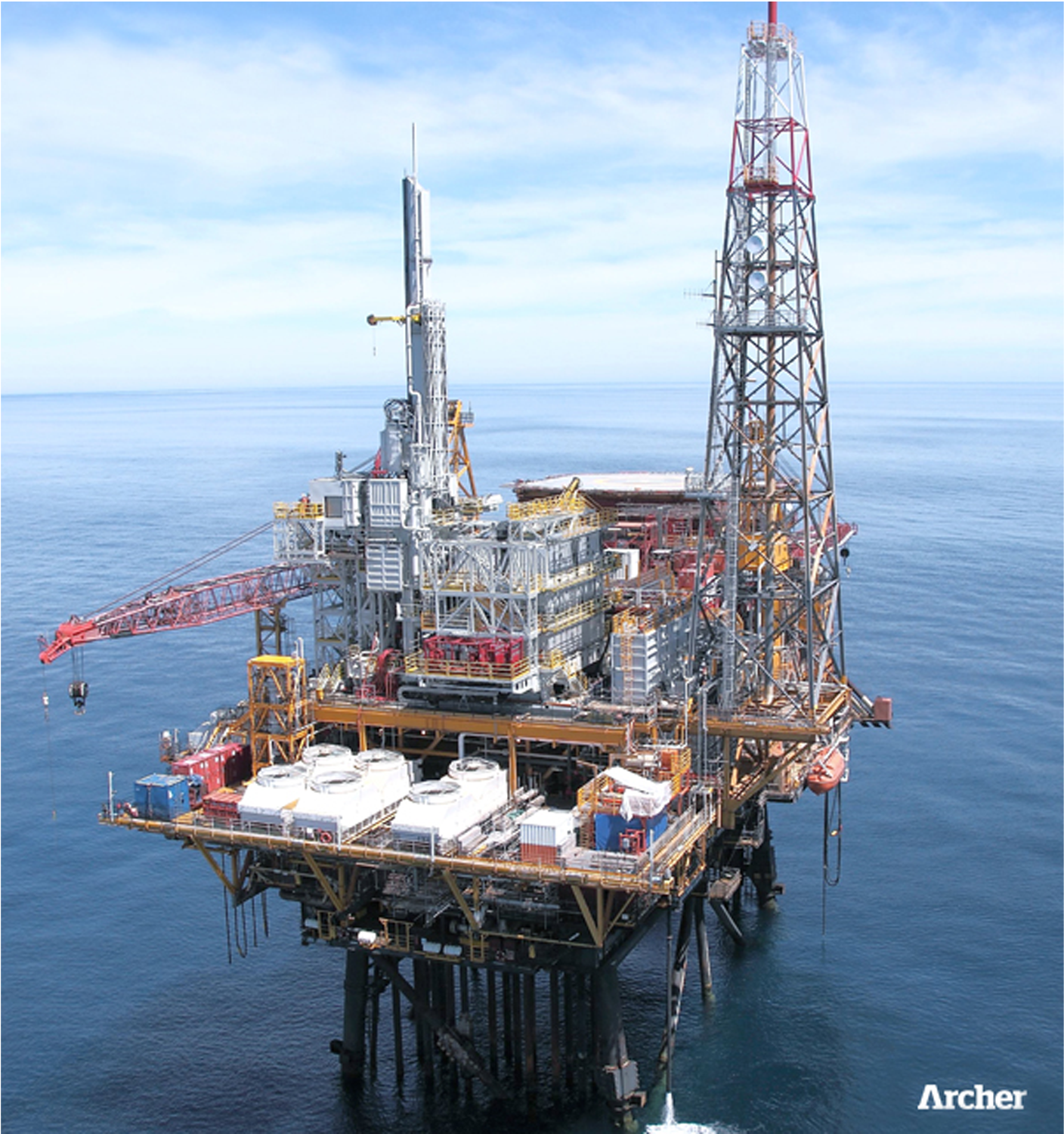

VDD 400

Modular Offshore Drilling Rig 400 t

  • Hook Load: 400 t (882,000 lbs)
  • Leistung der Anlage: ? kW
  • Operating Tubular: 2 3/8‘‘ to 20‘‘ (III Range – Singles) (tubular range?, mehrere zur Auswahl)
  • Max. Gestängelänge: ?

Produktdatenblatt

Field of Application: Rigequipment

Rigequipment

Drilling and Oilfield Equipment

Numerous innovations are integrated in each of our rigs which we also offer as single components. Existing drilling rigs can be upgraded and new rigs of other manufacturers can be completed with these components and systems.

Including integration of a complete turn-key solution, STREICHER offers all possible support. Due to the wide range of products and the comprehensive know-how, we offer a suitable customised solution for every individual requirement.

Hydraulic Top Drive

Powerful and Compact

  • Capacity: 199,6 t
  • Max. Breaking Torque: 44.000 Nm (32,454 ft. lbs)
  • Max. Drilling Torque: 40.000 Nm (29,503 ft. Lbs)
  • Max. speed: 200 rpm

Data Sheet

Drawworks

?

  • ?
  • ?
  • ?
  • ?



HPU

?

  • Customised hydraulic power units for on- and offshore applications
  • Electric drive possible
  • Modular design – split solutions for reduced lifting weight

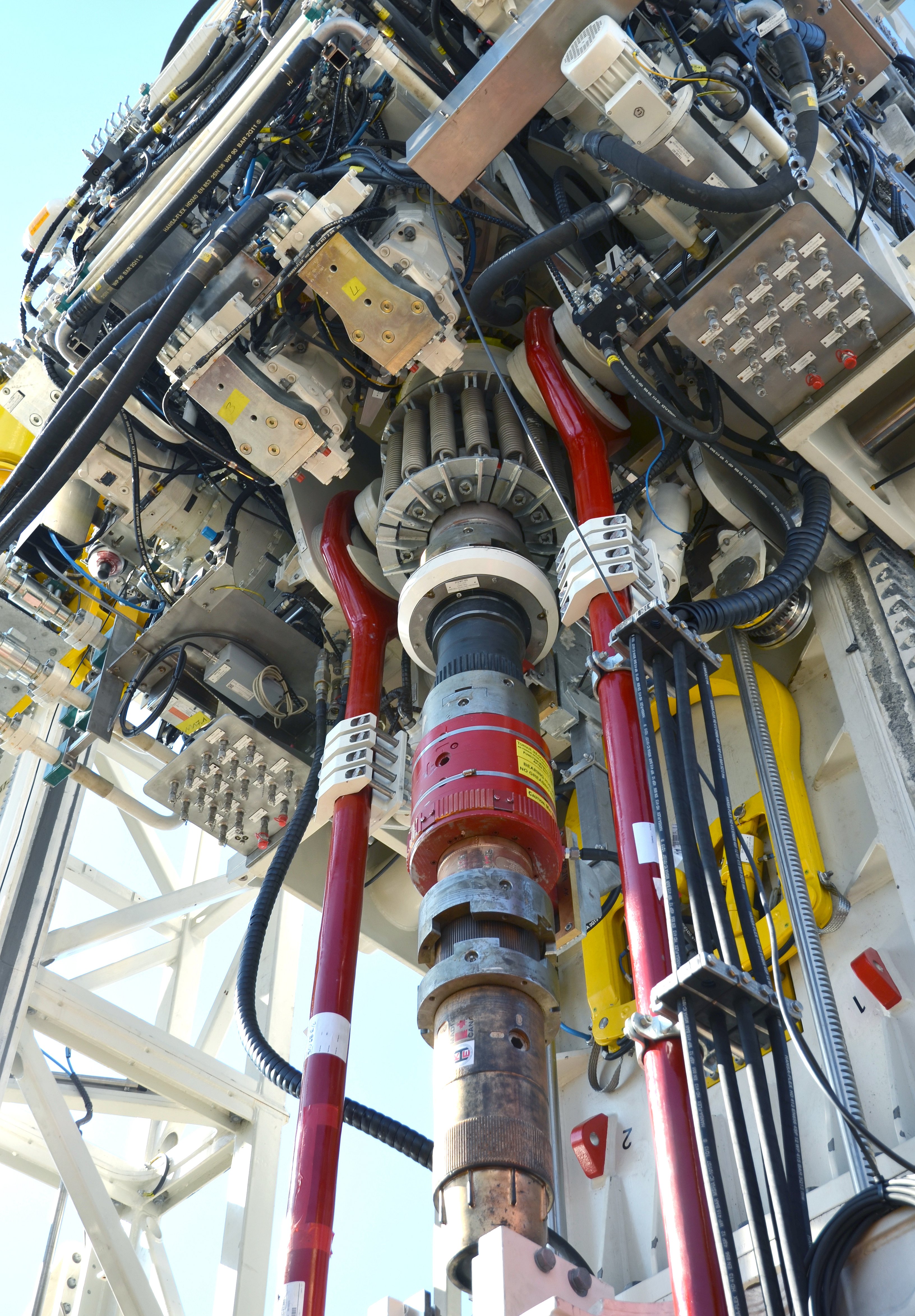

Load Cell

Accurat and Maintenance-free

  • Hook Load: 400 t (882,000 lbs) bidirectional
  • Torque Capacity: 100.000 Nm (73,800 ft. lbs) bidirectional
  • Torque & Hook Load Accuracy: < 1%
  • Data Rate: 1.000 samples per second

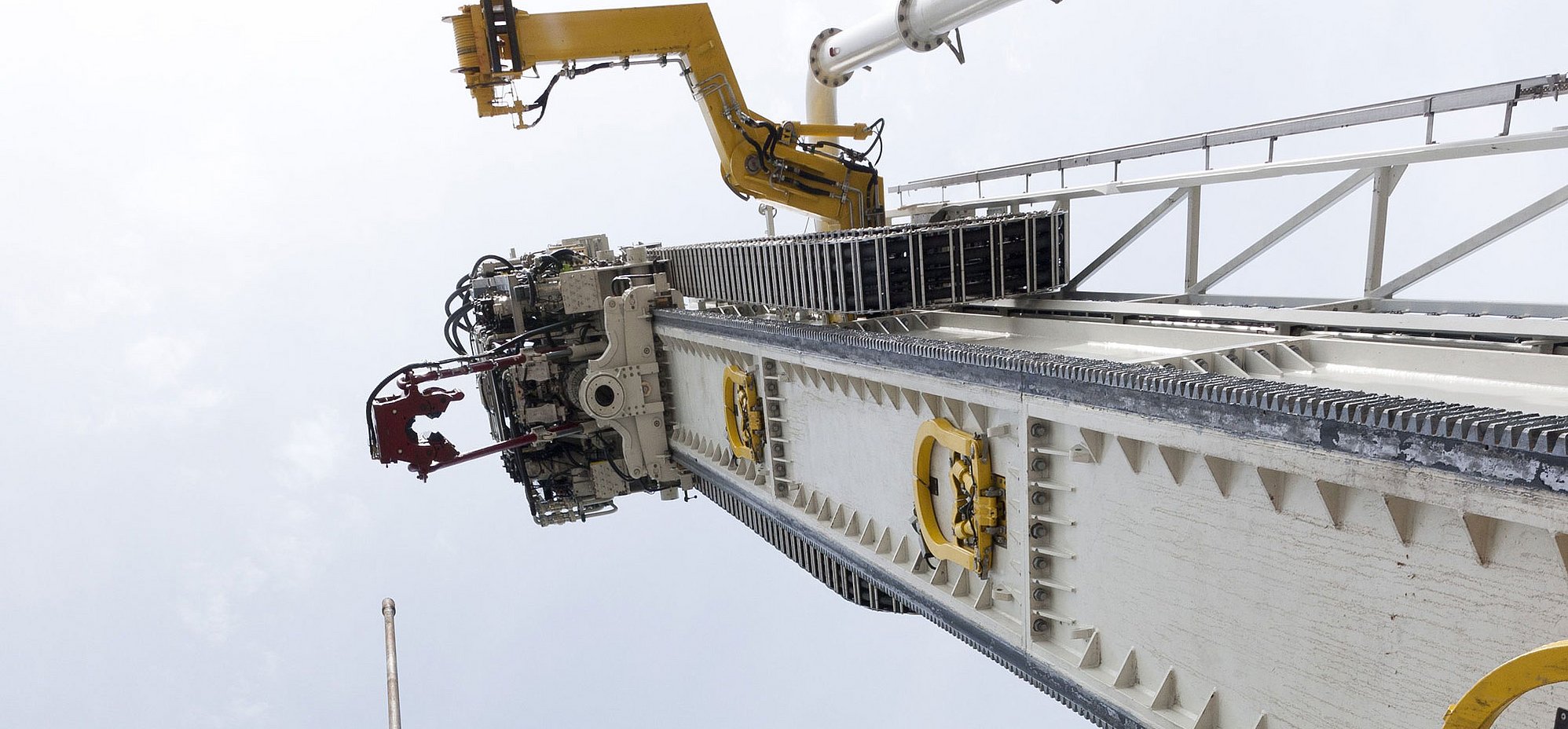

Pipehandling System

Less risks – less injuries

  • Horizontal or vertical pipehandler
  • Operating diameter range: 2 3/8‘‘ bis 20“
  • Tubular Length up to API Range III – 48,0 ft / 14,6 m
  • No adjustments or modifications within above diameter range

Power Swivel

?

  • ?

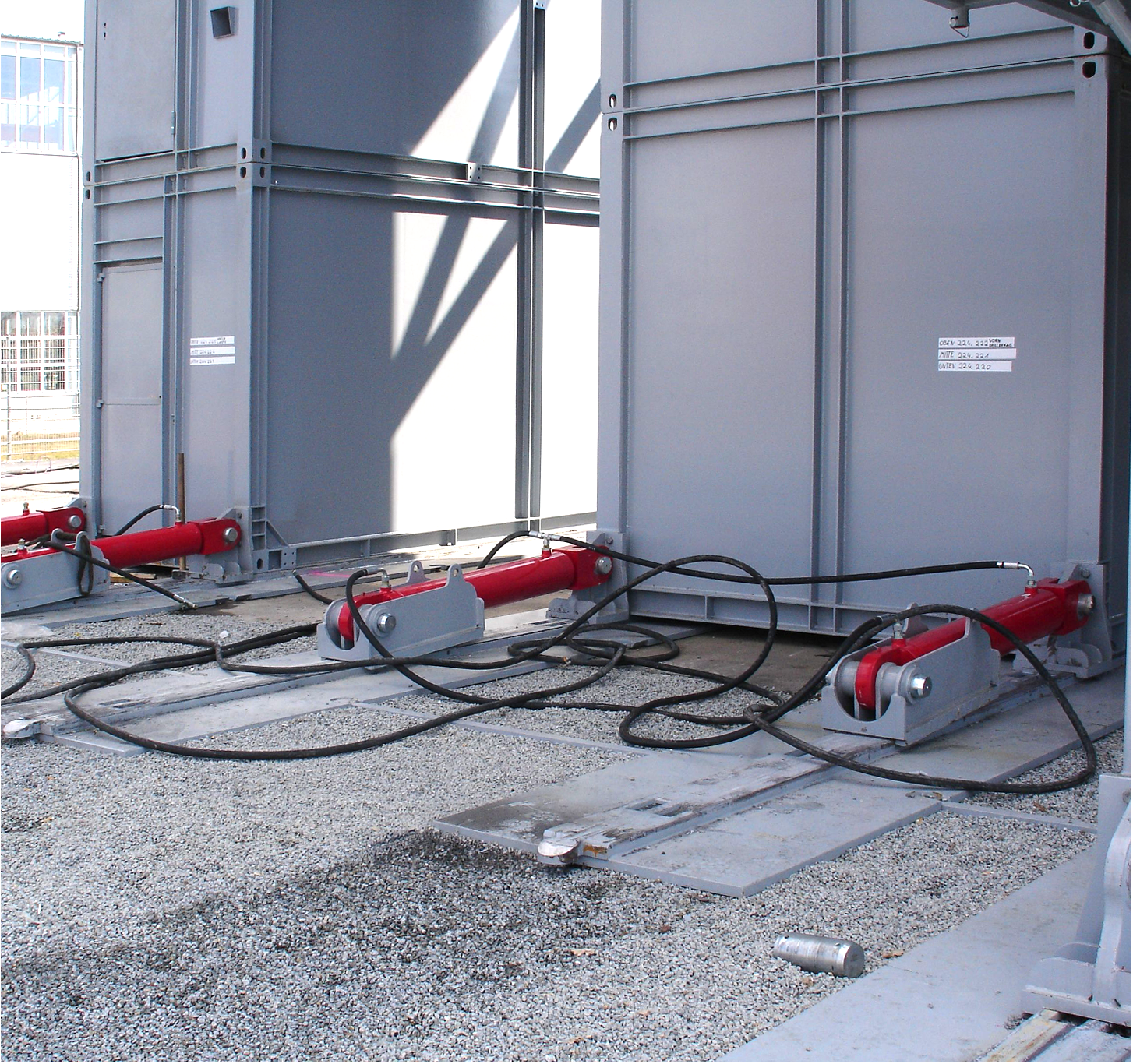

Skidding System

?

  • Hydraulic skidding systems for on- and offshore applications
  • Field-proven and flexible solutions
  • Individual customer-specific adaptations possible
  • Fastening with claws or clamps possible
